M/V AL HUSSEIN 8318116

M/V AL HUSSEIN 8318116

BASIC PARTICULARS :

M/V AL HUSSEIN 8318116

VESSEL NAME ALHUSSEIN
VESSEL TYPE RO-RO CARGO SHIP
FLAG ST. KITTS &NEVEIS
REGISTRTION NO SKN 1003913
PORT OF REGISTRY BASSETERRE
CALL SIGN V4QK4
MMSI 341414000
IMO NUMBER 8318116
YEAR BUILT 1985
CLASS SOCIETY CAPITAL REGISTER OF SHIPPING
CLASS NOTATION CS 1 RO-RO CARGO SHIP, CM
CLASS ID CR-00222
BUILDER SCHLICHTING -WERFT GMBH - LUEBECK
OWNER ALBANYASIA OVERSEAS INC.
MANAGER SENA SHIP MANAGEMENT S.A.
P & I CLUB AMERICAN CLUB
H & M CLUB AL-BAHRIAH INSURANCE & REINSURANCE S.A.L

VESSEL PARTICULARS :

SHIP PARTICULARS:

LENGTH OVERALL (M). 117.20
LBP (M). 101.00
DEPTH (M). 12.00
BREADTH OVERALL (M). 17.50
DRAUGHT (SCANTLING) (M) 5.22
LENGTH OF RAMP (M) 15.00
BREADTH OF RAMP (M) 13.50
DEAD WEIGHT (TONS) 3,133
GROSS TONNAGE (TONS) 6,650
NET TONNAGE (TONS) 1,995
SUEZ CANAL GROSS TONNAGE (TONS) 7,135.66
SUEZ CANAL NET TONNAGE (TONS) 5,912.51
LIGHT WEIGHT (TONS) 2,453
DISPLACEMENT (TONS) 5,586

PROPULSION PARTICULARS :

MAIN ENGINE (TWO) MAK 9 M453 3670 KW @600 RPM
AUX. ENGINE (THREE) MAN B&W 6L 20/27 486 KW @ 440 V
EMG DIESEL GENERATOR DEUTZ F5L 413 FR 78 KW @1800 RPM 125/130
EXHAUST GAS BOILER TWO X 750 KG/HR AALBORG AV-6

CARGO HOLDS CAPACITY :

TOTAL CONTAINERS CAPACITY 236 (FULL) + 21 (EMPTY) CONTAINERS
CARGO HOLD CAPACITY (BALES) 11,100.0
CARGO HOLD CAPACITY (GRAIN) 12,250.0
REFER CONTAINERS 38
CARS & TRAILERS CAPACITY: CARS TRAILERS 20 FT TRAILERS 40 FT
LOWER HOLD 46 -- --
MAIN DK. 158 66 33
WEATHER DK. 155 65 30 +(5X20FT)
TOTAL 359 121 63
CARGO HOLDS DIMENSIONS LENGTH (MT) BREADTH (MT) HEIGHT (MT)
LOWER GARAGE 44.5 (3.6 & 13.5) 2.8
MAIN GARAGE 94 (6.2 & 17.5) 6.0
WEATHER DECK 88 15 4.5

LANE METER :

LOWER HOLD 145
MAIN DECK 440
WEATHER DK 430
TOTAL 1,015

TANK CAPACITIES :

PROVISION REFRIGERATOR (M3) 30.00
DIESEL TANK CAPACITY (M3) 155.00
H.F. OIL TANK CAPACITY (M3) 545.90
LUB. OIL TANK CAPACITY (M3) 38.70
FRESH WATER TANK CAPACITY (M3) 352.00
DIESEL CONSUMPTION AT PORT (TONS) 2.0 (ACT)
DIESEL CONSUMPTION AT SEA (TONS) 2.0 (ACT)

DECK AREAS :

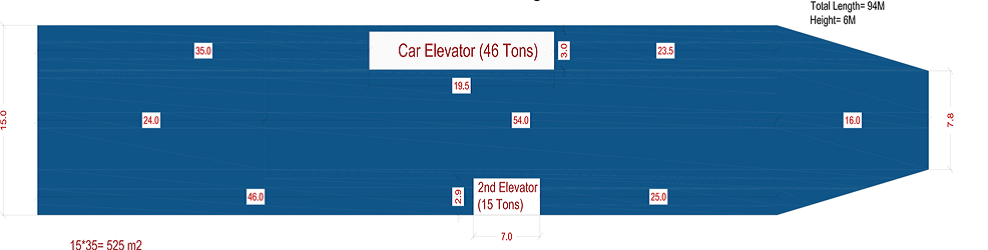

MAIN GARAGE :

15 MX 35 M = 525 M²

11 M X 11.5 M = 126.5 M²

8.6 MX 7 M = 60.2 M²

1.5 M X 11.5 M = 17.25 M²

15 M X 23.5 M = 352.5 M²

(7.8 M +15 M)/2 X 16 M = 182.6 M²

TOTAL = 1,263.85 M²

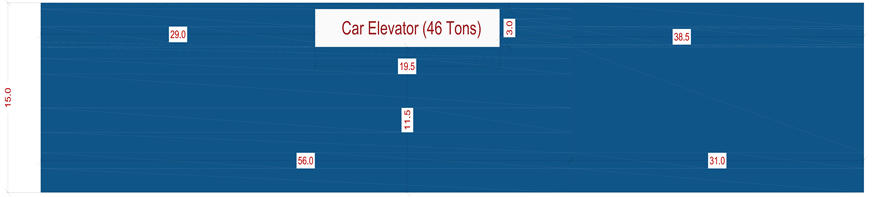

WEATHER DECK :

15 MX 29 M = 435 M²

15 M X 38.5 M = 577.5 M²

11.5 M X 19.5 M = 224.25 M²

TOTAL = 1,236.75 M²

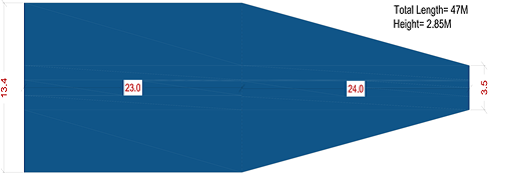

LOWER DECK :

13.4 M X 23 M = 308.2 M²

(13.4 M +3.5 M)/2 X 24 M = 202.8 M²

TOTAL = 511 M²

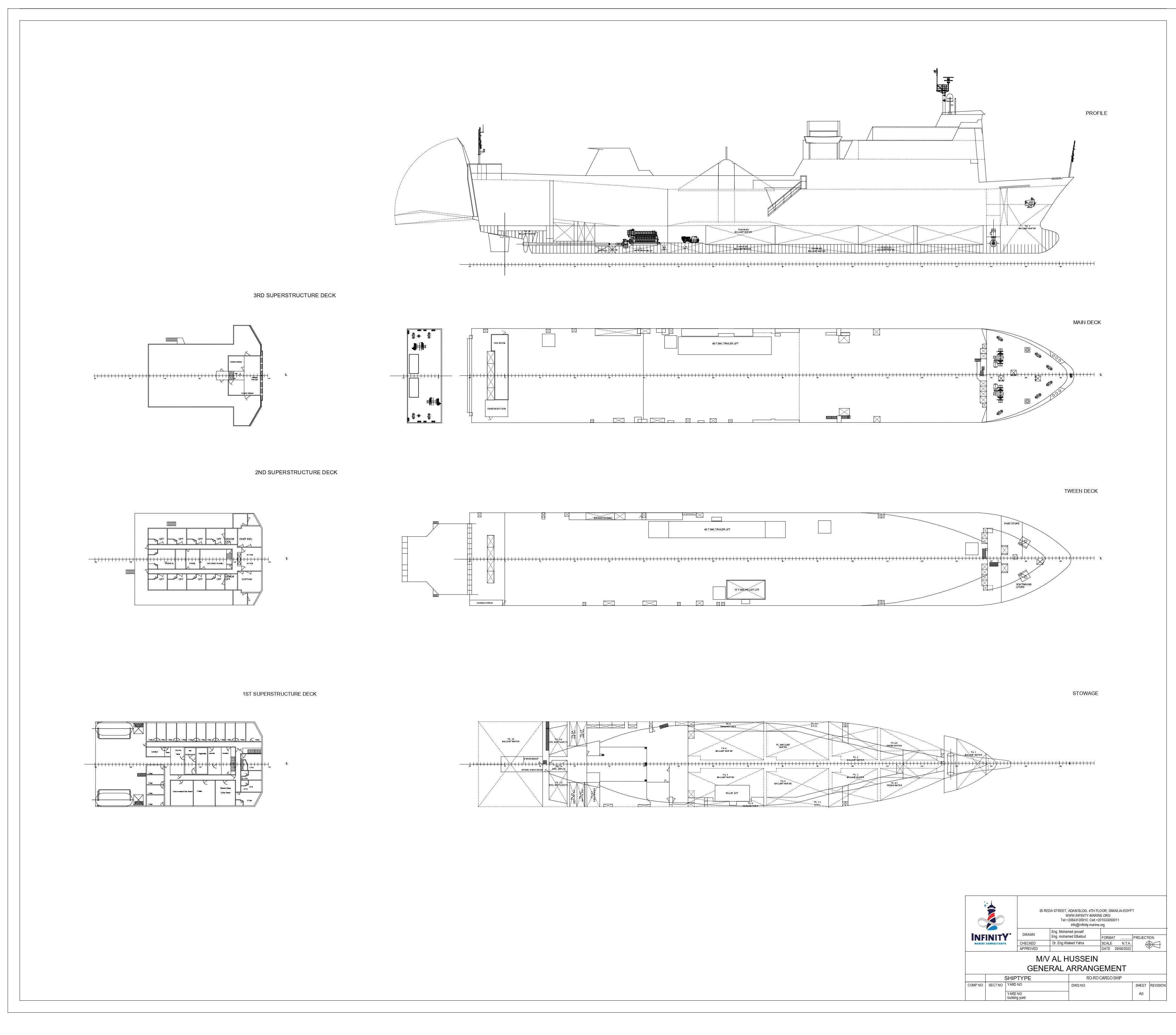

GENERAL ARRANGEMENT

AL HUSSEIN GENERAL ARRANGEMENT
